- Magnification low power: 1.2-6*24
- Magnification high : 6
- Clear aperture (mm): 24
- Diopter range +/-: 2
- Eye relief: 96

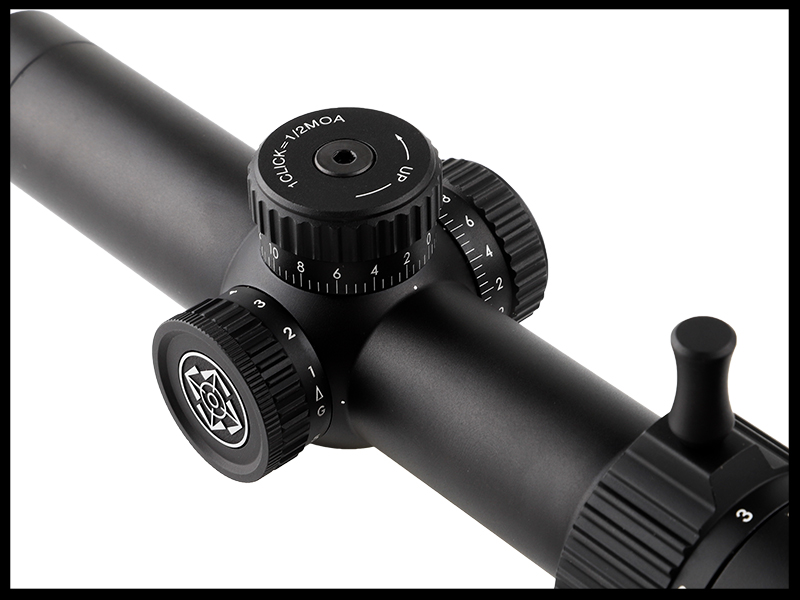

- Standard Klick value for E/W (MIL): 1/5
- Total travel elevation (@ 100 yds): ≥ 60MOA
- Total travel windage (@ 100 yds): ≥ 60MOA
- Parallax Compensation: 100yds
- Fast focus eyepiece: yes
- Sealing gas used: Nitrogen
- Clear aperture min magnification (mm): 21.4
- Clear aperture max magnification (mm): 24
- Eff. exit pupil diameter @ min. magnification ± 3 %: #VALUE!
- Eff. exit pupil diameter @ max. magnification ± 3 %: 4.00
- Maximum resolution in Arc. Second (min. Magnification): 8.00
- Maximum resolution in Arc. Second (max. Magnification): 7.00
- Range of Function temperature (Unit can still be operated): -25°C/+55°C
- Storage temperature: -40C to +85C
- Range of Dioptric compensation +/- dpt: 2.00
- Permissible backlash Dioptric Compensation: <0.25dpt
- objective field of view @ min magnification (ft @100yds): #VALUE!
- objective field of view @ max magnification (ft@100yds): 21.22
- Change of impact point after change of magnification (MOA): 1

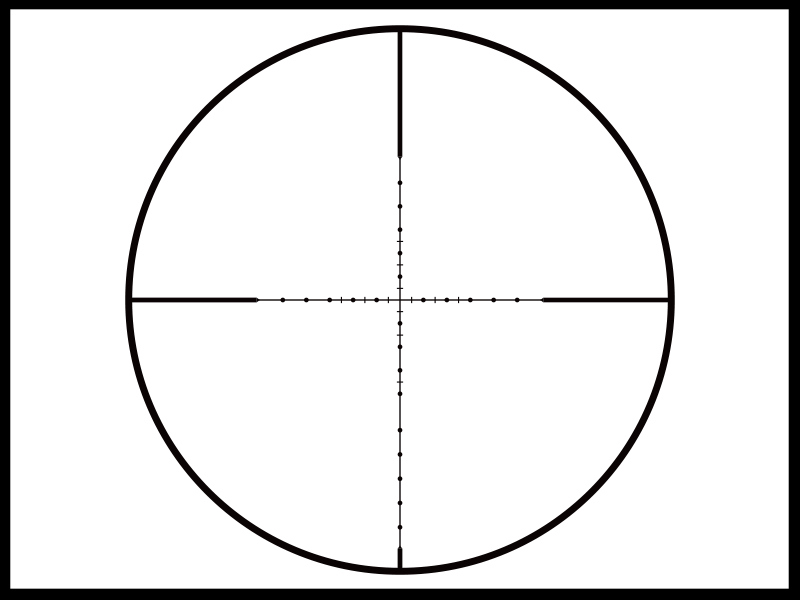

- Straightening of the Reticle: ± 2 °
- Coating : FMC
