- Magnification: 4-16

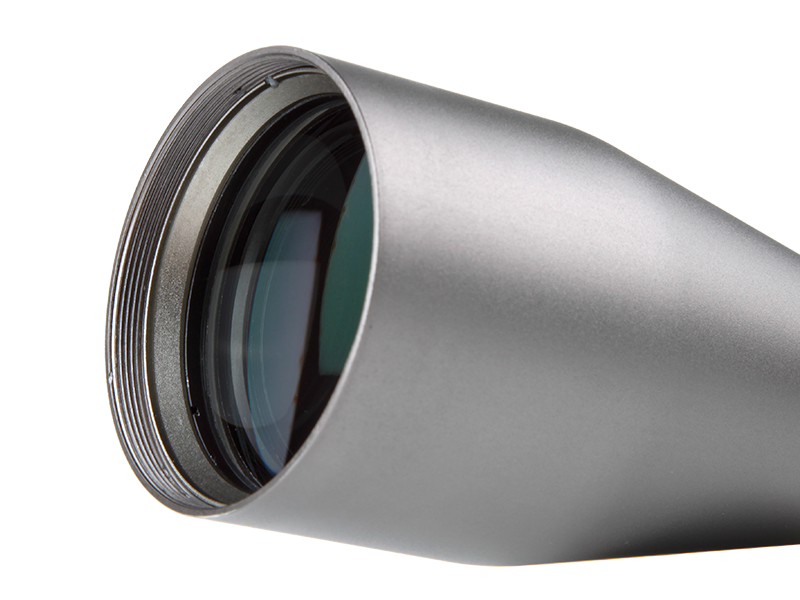

- Clear aperture (mm): 44
- Diopter range +/-: 2
- Weight (g): 559
- Eye relie: 96

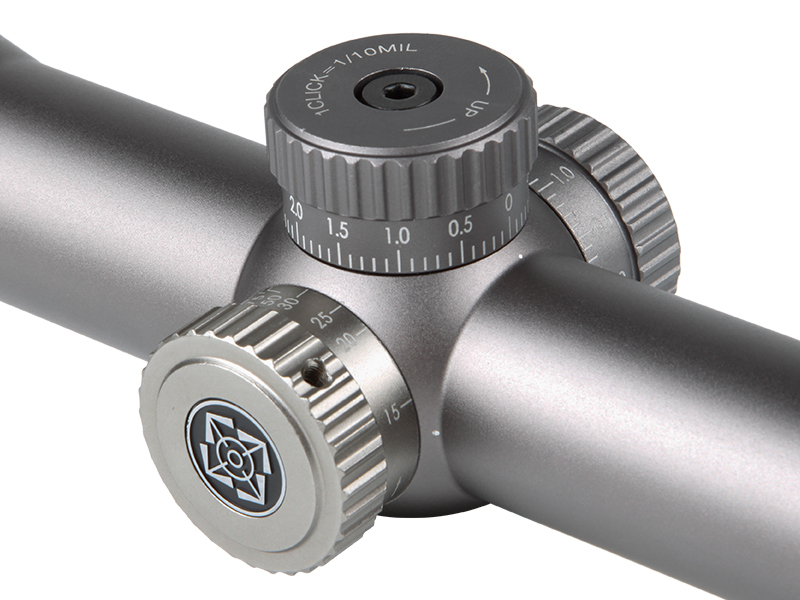

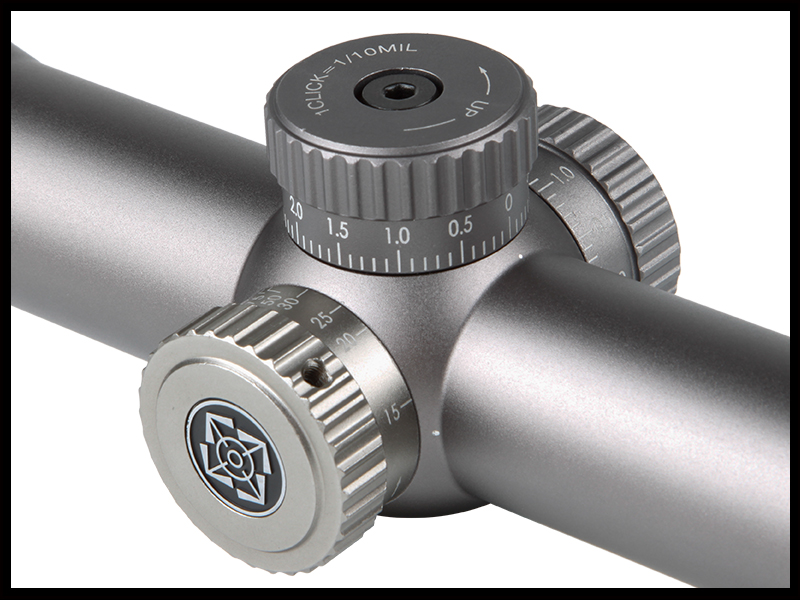

- Standard Klick value for E/W (MIL): 0.1
- Total travel elevation (@ 100 yds): ≥ 50M0OA
- Total travel windage (@ 100 yds): ≥ 50M0OA

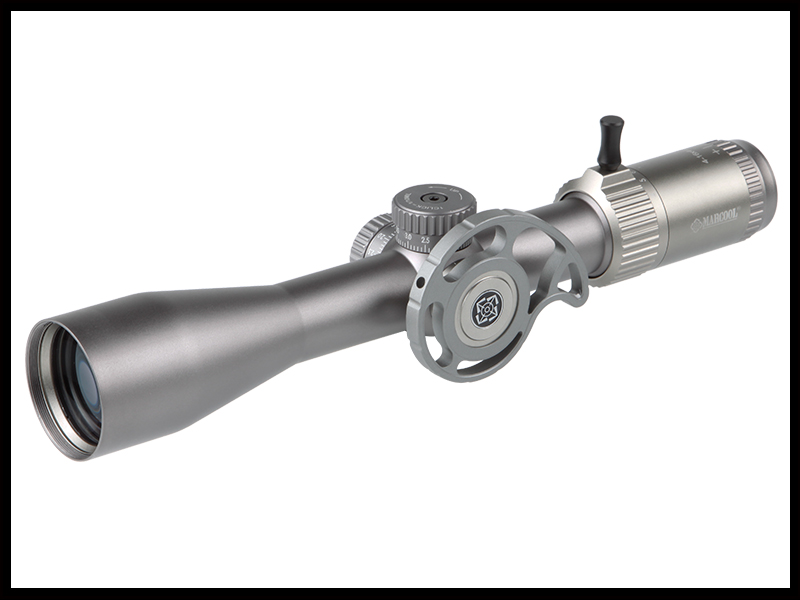

- Parallax Compensation: 15yds-∞
- Fast focus eyepiece: yes
- Sealing gas used: Nitrogen
- Clear aperture min magnification (mm): 44
- Clear aperture max magnification (mm): 44
- Eff. exit pupil diameter @ min. magnification ± 3 %: 11.00
- Eff. exit pupil diameter @ max. magnification ± 3 %: 2.75
- Maximum resolution in Arc. Second (min. Magnification): 4
- Maximum resolution in Arc. Second (max. Magnification): 4
- Range of Function temperature (Unit can still be operated): -25°C/+55°C
- Storage temperature: -40C to +85C
- Permissible backlash Dioptric Compensation: <0.25dpt
- bjective field of view @ min magnification (ft @100yds): 31.8
- objective field of view @ max magnification (ft@100yds): 8.0
- Change of impact point after change of magnification (MOA) : 1

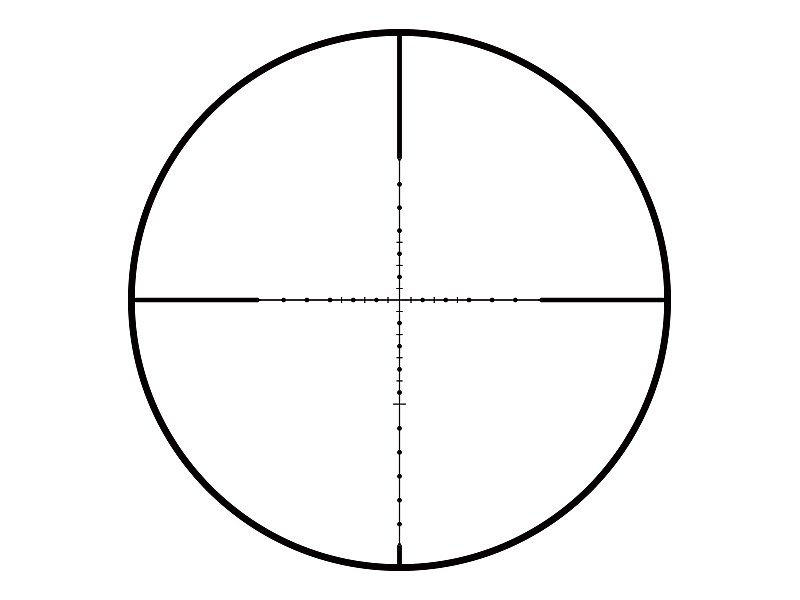

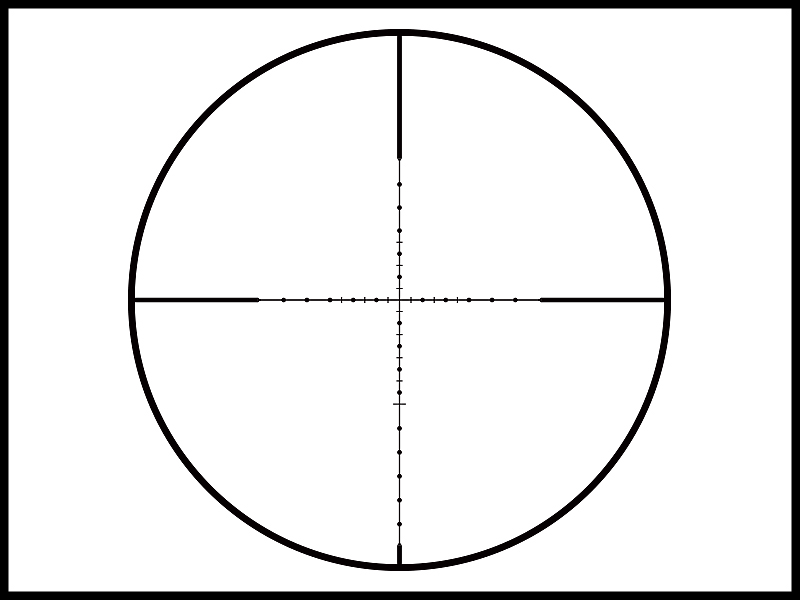

- Straightening of the Reticle: ± 2 °
- Coating : FMC
